MASTER – Inverter monoblock heat pump
MASTER is a high efficiency reversible air to water heat pump. It is a fully integrated unit, where the indoor and outdoor units are combined as one module. This unit does not require refrigerant piping work since the monoblock outdoor unit is connected exclusively to water piping.
This unit does not require refrigerant piping work since the monoblock outdoor unit is connected exclusively to water piping.
It is equipped with DC inverter compressor, DC brushless fan motor, and hydronic kit with DC inverter circulator. The inverter technology together with the effective modulating power ensure very high efficiency. These features ensure high COP and EER.
All models have function of heating and cooling, can produce domestic hot water, are WiFi ready and can be controlled remotely. It is available in two versions: MASTER with R32 refrigerant, and MASTER PLUS with R290 refrigerant.
Axial fan with speed inverter
R32 / R290 refrigerant
Twin-rotary Mistubushi compressor
Domestic hot water prodction
Installation and PV control
FEATURES
- All units can work in three different modes: heating, cooling and DHW, with specific programs that enhance the performance at all conditions, with ambient temperature curve management
- Energy class A+++, cutting edge technology and modern design
- Wide range of working temperature: ambient temperature -25..+45°C, and water output temperature 10…75°C
- All models series are WiFi ready and can be controlled remotely by smartphone application
- Twin-rotary DC Mitsubishi Inverter compressor and axial fan with DC inverter motor
- EEV (Electronic expansion valve) technology for precise control of the refrigeration cycle
- Source exchanger: Optimized circuit with blue fin coil and copper pipes
- Brazed heat exchanger for the hydraulic circuit with reduced pressure drop on the water side
- Refrigerant circuit: The circuit is made with copper pipes and includes: condensing control, electronic expansion valve (EEV), reversing valve for heating/cooling, high/low pressure switch, separator and liquid receiver, drainage valve, high and low pressure transducers, discharge/suction/coiling temperature sensor
- Integral hydraulic system: pump with high efficiency brushless circulator, expansion tank, water flow sensor, air valve, pressure relief valve, water inlet/outlet temperature sensor
- Intuitive controller with various functions for the complete hydraulic installation: buffer, HUW boiler, solar thermal panel, up to two diverting valves, one mixing valve, and two installation pumps
- Energy state (smart grid), connection with the PV installation, energy information monitoring

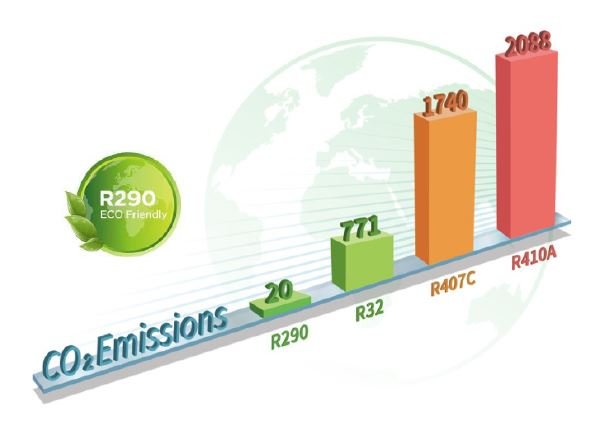

The MASTER heat pump is using R32 refrigerant, which has 70% lower GWP (global warming potential) compared to older types of refrigerant, and can reach output temperature up to 60°C.
The new range of heat pumps is available with R290 refrigerant, which is pure propane and has a very low environmental impact and can reach temperature up to 75°C. R290 is the preferred hydrocarbon alternative of the Environmental Protection Agency (EPA).
The heat pump is in compliance with ErP directives and attains the A+++ energy class.

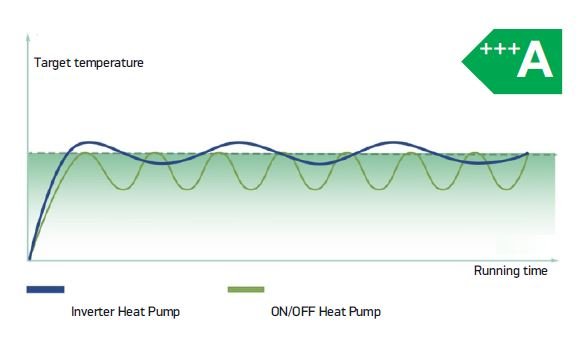

Due to the full inverter technology of the compressor and fan, it can modulate to low frequency when set temperature is reached in order to maintain minimum heat losses of the house.
This ensures shorter heating time, smaller temperature fluctuations, and significant energy savings.
MITHSUBISHI COMPRESSOR
The compressor is the heart of the heat pump for efficiency and reliability. It ensures stable heating capacity and reduced noise.

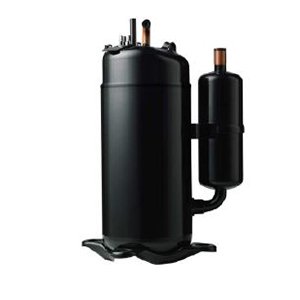

All MASTER heat pumps come with DC inverter twin-rotary Mitsubishi compressor

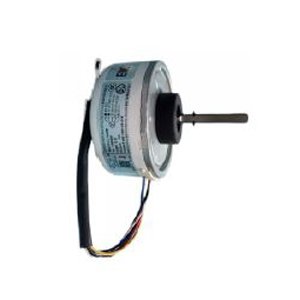

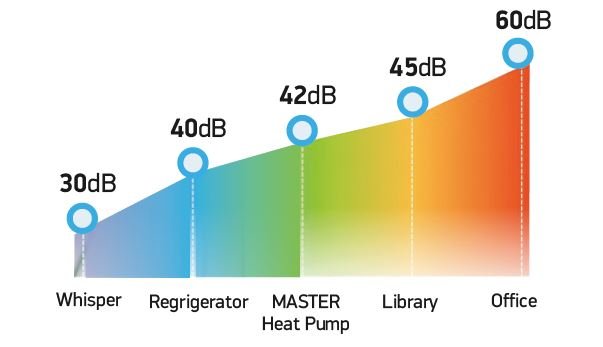

DC BRUSHLESS FAN
The fan motor is DC brushless to ensure improved efficiency. Also, the fan blades and the air grill are specially designed to ensure as low noise as possbile.
EVI TECHNOLOGY
EVI stands for “Enhanced Vapor Injection” and is a technology used to achieve higher performance at lower temperatures as low as -25°C.
EEV EXPANSION VALVE

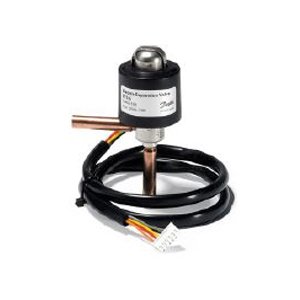

The expansion valve is with electric control (EEV). This feature, combined with precision measuring of refrigerant temperature and pressure, ensure optimum efficiency.
PLATE HEAT EXCHANGER

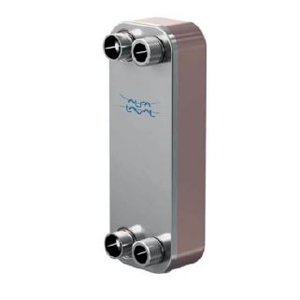

The plate heat exchanger is carefully selected to increase heat transfer efficiency, low pressure drop, and ensure higher COP.

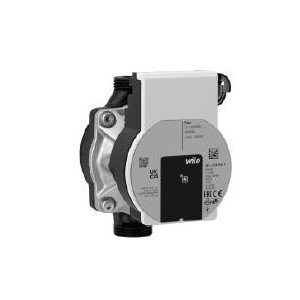

DC INVERTER PUMP
The heat pump comes with reliable DC inverter pump, to ensure reliability and comfortable heating experience.

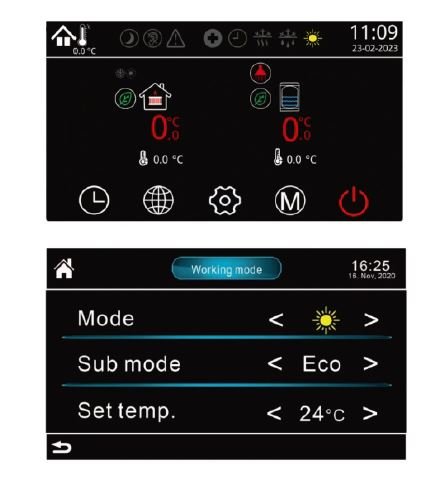

The heat pump is equipped with a 5 inch colour touch screen, which is very intuitive and user-friendly, and has shows the power consumption daily, monthly and yearly.
Premium design 5 inch colour LCD display
Capacitive touch button
Information with simple graphic icon and text
Energy consumption and heat production monitoring daily, monthly, yearly
Integrated control of a hot water boiler / buffer
Room thermostat connection for heating / cooling
Integrated weekly programmer
WiFi ready and control through smartphone application
Cascade of 2 heat pumps with standard controller, up to 8 heat pumps with a cascade module (optional)
Control of the complete heating installation with 7 sensors: external temperature, buffer tank, DHW tank (low and high), internal room sensor, solar circuit, heating circuit.
SG READY AND SMART GRID

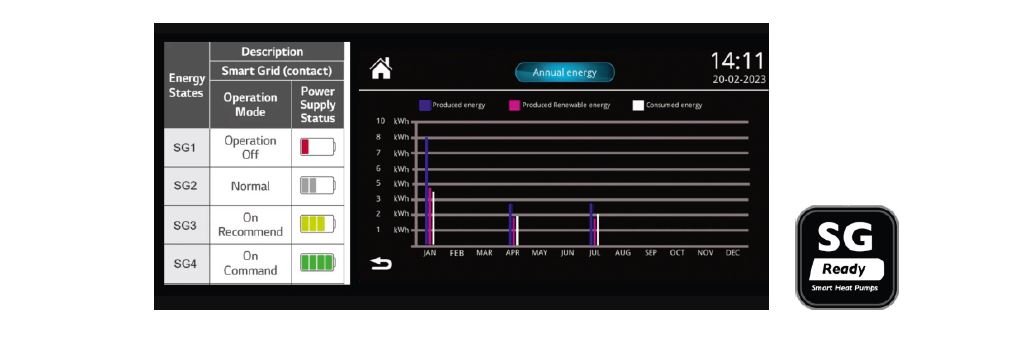

The heat pump can receive signals about the power source and switch energy usage. When the electricity price is high, the heat pump runs as energy-saving as possible, when the price is low, it will use as much electricity as possible. It can also be connected with the solar photovoltaic installation, and adjust its power consumption to the energy production.

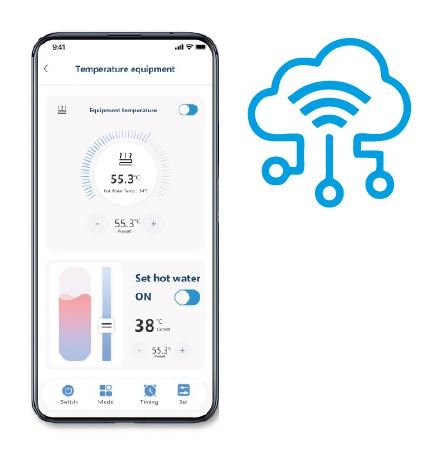

The heat pump has integrated Wi-Fi function and mobile application, so that the user can control the heat pump anywhere and anytime.
The application has highly integrated control functions, is easy to operate and transforms your heating installation into a truly smart operating system. Additionally, the producer can use the smart data platform to provide remote product inspection, and even software update, offering prompt assistance.
Legend:

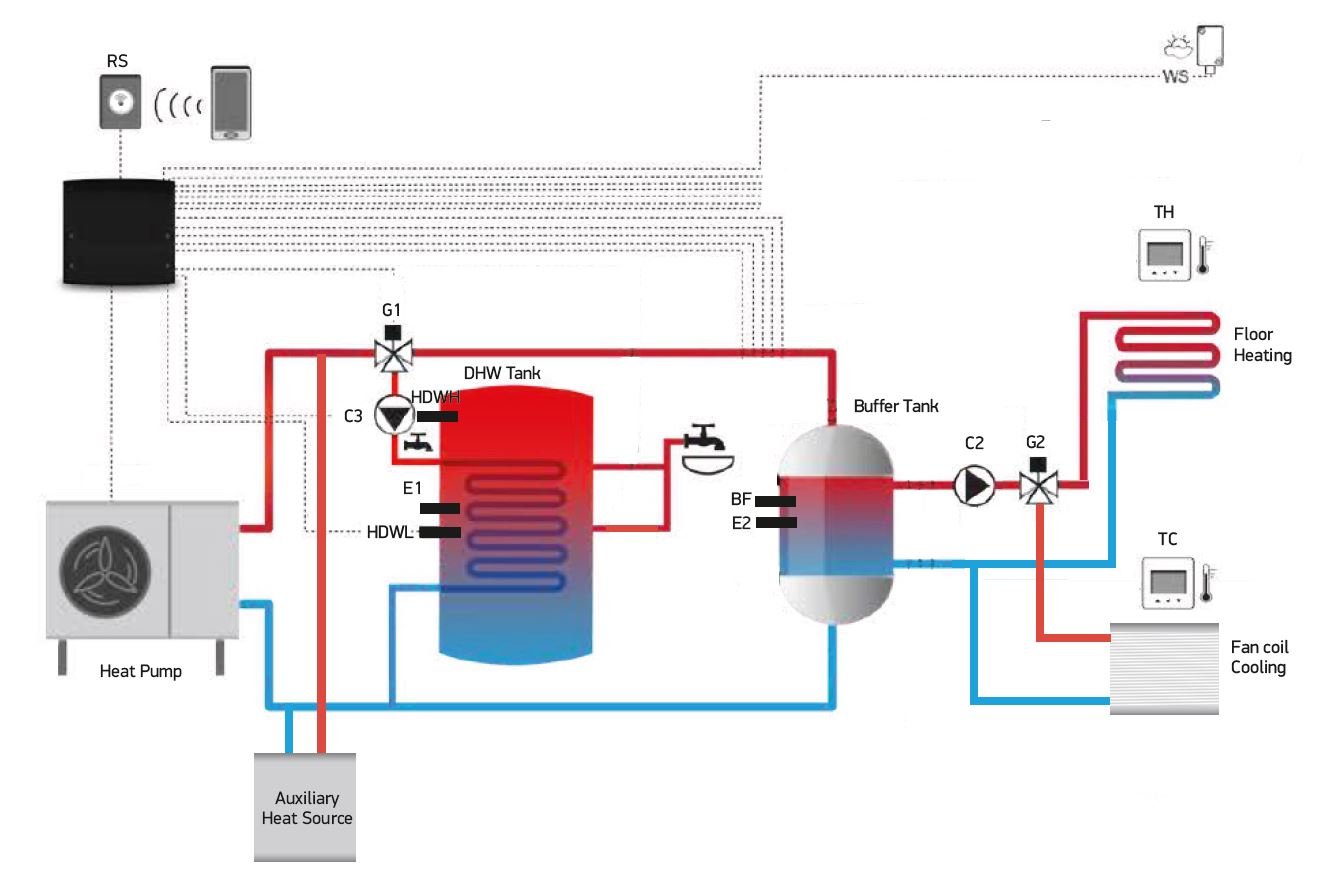

- G1: 3-way diverting valve for heating/DHW
- G2: 3-way diverting valve for heating/cooling
- C2: Internal installation pump
- C3: DHW pump
- TH: Heating room thermostat
- TC: Cooling room thermostat
- BF: Buffer sensor
- HDWH: DHW sensor (high)
- HDWL: DHW sensor (low)
- E1: DHW electric heater
- E2: Buffer electric heater
- WS: External temperature sensor RS: Room temperature sensor
The heat pump has integrated Wi-Fi function and mobile application, so that the user can control the heat pump anywhere and anytime.
The application has highly integrated control functions, is easy to operate and transforms your heating installation into a truly smart operating system. Additionally, the producer can use the smart data platform to provide remote product inspection, and even software update, offering prompt assistance.
| Type | MASTER 60 | MASTER 90 | MASTER 120 | MASTER 160 | MASTER 180 | MASTER 120T | MASTER 160T | MASTER 180T | MASTER 260T | |
| Heating capacity range | kW | 1,5-7 | 2-10 | 3-13 | 4-18 | 4-20 | 3-13 | 4-18 | 4-20 | 5-28 |
| COP | W/W | 4,63 | 4,69 | 4,60 | 4,50 | 4,53 | 4,62 | 4,50 | 4,55 | 4,51 |
| Rated water flow | m3/h | 1,1 | 1,6 | 2,1 | 2,8 | 3,1 | 2,1 | 2,8 | 3,1 | 4,5 |
| Rated power supply | V/Hz | ~220-240/50 | ~380-415/50 | |||||||
| Max input power | kW | 2,2 | 3,5 | 4,7 | 6,0 | 6,6 | 4,7 | 6,5 | 6,5 | 10,0 |
| Max input current | A | 12 | 15 | 20 | 26 | 28 | 8 | 11 | 11 | 17 |
| Air flow | m3/h | 3.500 | 4.000 | 4.500 | 6.500 | 8.000 | 4.500 | 6.500 | 8.000 | 9.000 |
| Noise level (1m/5m) | dB | 51/37 | 53/39 | 54/40 | 56/42 | 56/42 | 54/40 | 56/42 | 56/42 | 58/44 |
| Water connections | inch | 1″ | 1″ | 1″ | 1″ | 1″ | 1″ | 1″ | 1″ | 1 1/2″ |
| Dimensions LxWxH | mm | 976x450x688 | 1106x450x688 | 1106x450x835 | 1106x450x1135 | 1106x450x1603 | 1106x450x835 | 1106x450x1135 | 1106x450x1603 | 1106x450x1603 |
| Weight | kg | 65 | 75 | 85 | 100 | 135 | 75 | 100 | 135 | 180 |
